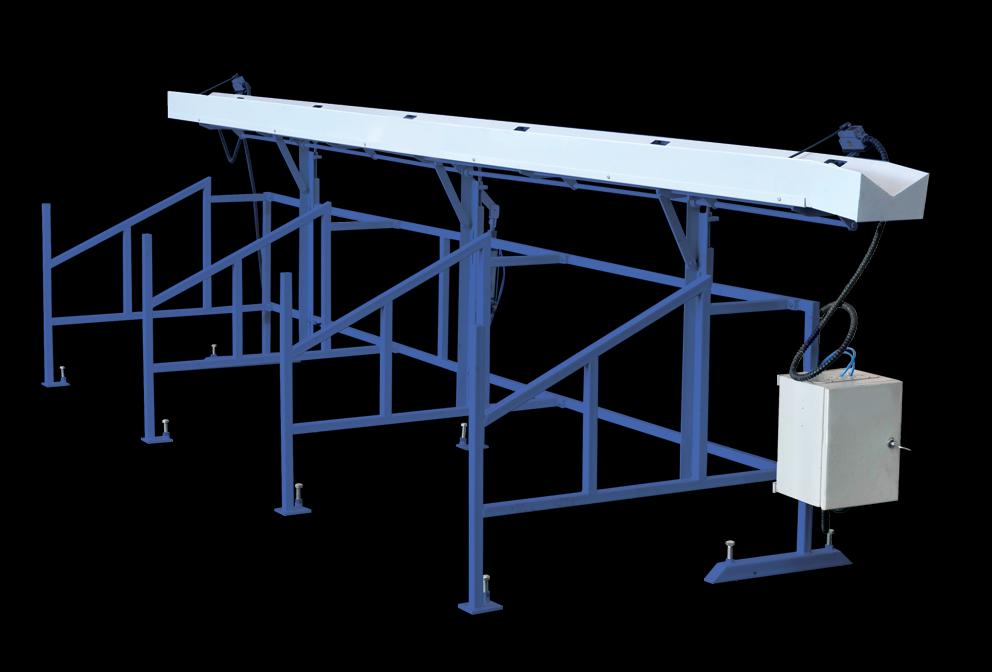

The Tube/Pipe Tilting Unit (also known as a stacker or tilter) is the final downstream equipment in a plastic pipe extrusion line. It receives the finished pipe after cutting, tilts it safely onto a collection platform, and allows for neat stacking and unloading. Designed with heavy-duty construction and automated control, the tilting unit ensures smooth handling while reducing manual labor.
Smooth automatic unloading and stacking
Protects pipes from impact or scratches
Reduces labor and improves operator safety
Enhances production efficiency
Low maintenance with long service life
Heavy-Duty Frame – Capable of handling both small and large diameter pipes.
Automatic Tilting & Stacking – Fully synchronized with the cutting unit.
Adjustable Length Capacity – Suitable for pipes of various lengths and diameters.
Shock-Absorbing Mechanism – Prevents surface scratches and pipe deformation.
User-Friendly Control – PLC/HMI or manual panel for easy operation.
Durable Construction – Built with high-grade materials for long service life.
PVC, HDPE, and PPR pipe extrusion lines
Conduit & casing pipe handling
Pressure & non-pressure pipe stacking
Industrial large-diameter pipe unloading
